特 點 Features

● IEC標準插座式一體化濾波器。 IEC Standard socket type integrated filter.

● 常規通用，安裝方便。General purpose, easy to install.

應 用 Application

● 各種小型電子設備和電子測量儀器。

A variety of small electronic equipment and electronic

measuring instruments.

性能指標 Characteristcs

產品型號表 Filter Table

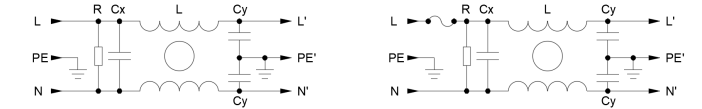

電原理圖Typical Circuit Diagram

Fig.1 Fig.2

Fig.3 Fig.4

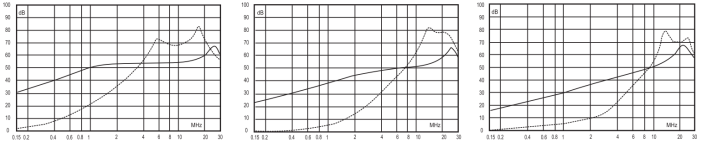

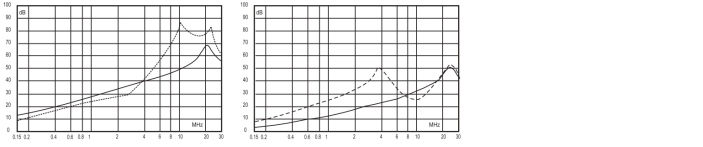

插入損耗 Insertion LOSS in dB (50Ω測量系統，IEC/CISPR No.17號出版物)

1A 3A 6A

10A 16A

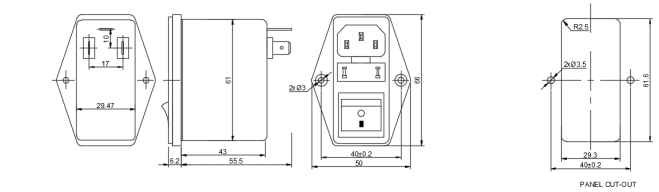

外形尺寸圖 Outline Drawing : mm

Fig.1 (插片式) Fig.2 (引線式)

Fig.3 (單保險絲)

Fig.4 (單/雙保險絲、雙開關)
